T Thread Self Drilling Anchor Manufacturer
What's T Thread Self Drilling Anchor?

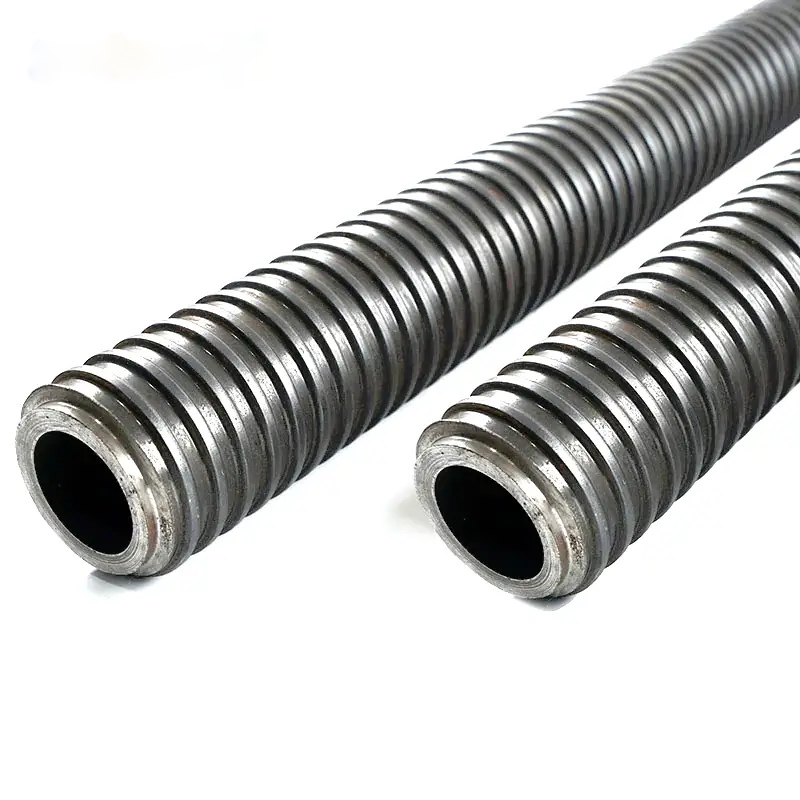

A T-Type self drilling hollow grout anchor is a fully threaded, hollow steel anchoring system designed for simultaneous drilling, grouting, and anchoring in unstable ground conditions.
The T-thread profile is widely used in international projects due to its simple structure, good compatibility, and cost efficiency, making it a popular choice for large-volume procurement and distributor supply.
Key benefits of T Thread anchors:
- Easy installation and assembly on site
- Compatible with common nuts, couplers, and plates
- Cost-effective solution for large-scale projects
- Suitable for temporary and permanent applications
- No pre-drilling required in unstable ground

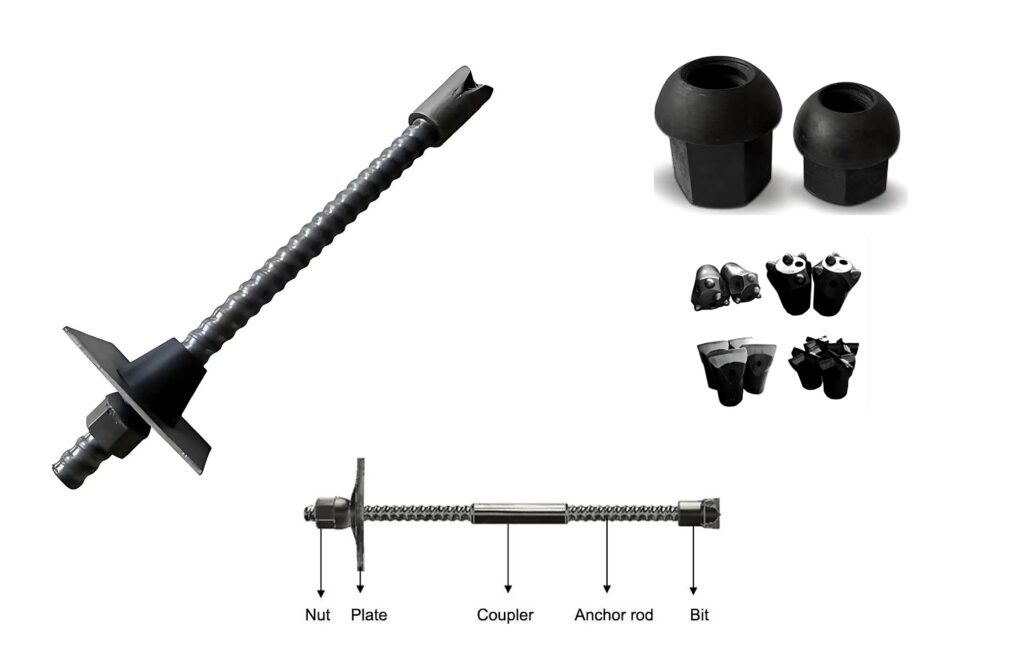

SDA System Components
- 01 Hollow Anchor Rod: Threaded hollow steel rod used for drilling, grouting, and permanent anchoring with high tensile .
- 02 Drill Bit: Sacrificial drill bit for efficient penetration, available in cross, button, or clay types matched to anchor size.
- 03 Centralizer: Steel plate distributing anchor load evenly to the supported structure or ground surface.
- 04 Coupler: Threaded steel coupler connecting anchor rods to achieve greater drilling depth and continuous load transfer.
- 05 Anchor Nut: Heavy-duty threaded nut securing the anchor system after installation and ensuring reliable load transmission.
- 06 Anchor Plate: Cement-based grout injected through the hollow core to bond surrounding ground and provide corrosion protection.
T Thread Self Drilling Anchor Types & Specifications
| T-Type | Outer Diameter | Steel Grade | Yield Strength | Typical Applications |
|---|---|---|---|---|
| T25 | 25 mm | Alloy Steel | ≥ 500 MPa | Slope stabilization |
| T30 | 30 mm | Alloy Steel | ≥ 500 MPa | Tunnel support |
| T40 | 40 mm | Alloy Steel | ≥ 500 MPa | Mining reinforcement |
| T52 | 52 mm | Alloy Steel | ≥ 500 MPa | Heavy ground support |
Custom T Thread Self Drilling Anchor
OEM T Thread Self Drilling Anchor
Sdarockbolt support comprehensive customization services:
Anchor length and diameter
Thread type and pitch
Surface treatment and corrosion protection
Packaging and labeling
Project-specific technical requirements
Our engineering team works closely with customers to deliver optimized anchoring solutions.
Material & Corrosion Protection Options
To meet different environmental and project requirements, we offer multiple material and surface treatment options:
Base Material: High-strength alloy steel
Surface Finishes:Black / Plain, Hot-dip Galvanized, Epoxy Coated
Corrosion Resistance Levels:
Suitable for temporary or permanent ground support applications.
T Thread Self Drilling Anchor Applications
Self drilling hollow grout anchors are widely used in: Tunnel and underground excavation support, Slope stabilization and landslide prevention, Mining and rock reinforcement, Foundation and underpinning works,Rock bolting in difficult geological conditions
Soil Nailing
Tunnel and Metro Support
Slope Stabilization in Highways
Buildings Foundation Reinforcement
Underground Mining Support
T Thread Self Drilling Anchors vs R Thread Self Drilling Anchors
| Item | T-Type Anchor | R-Type Anchor |
|---|---|---|
| Thread Structure | Simple trapezoidal thread | Continuous rope thread |
| Cost Level | More economical | Higher |
| Installation | Easy and practical | High load efficiency |
| Typical Use | Large-volume projects | High-load applications |
